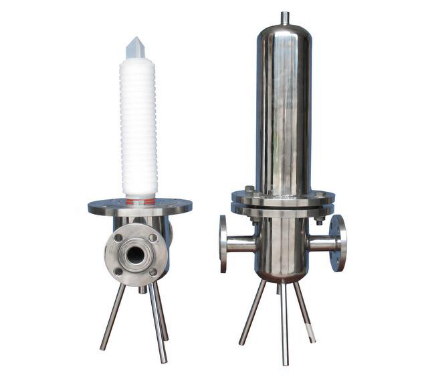

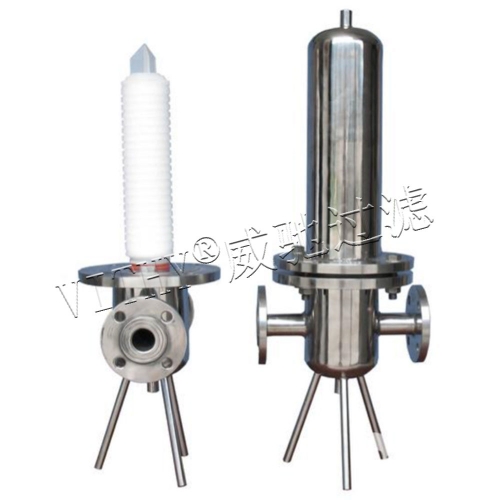

VITHY VATF air filter is widely applied in the fermentation industry. A large amount of compressed air is required in all fermentation processes. Organic and inorganic pollutants in compressed air from the atmosphere should be removed in the fermentation process sensitive to heterogenic bacteria, especially phages. In this case, the design and model of the air filtering system are of great importance.
When VATF-BD bag filter (5μm -10μm) is installed in front of the air compressor, the content of inorganic matters in compressed air can be reduced, and the service life of the air compressor can be greatly prolonged. VATF-ZC main filter (0.5μm) is capable of intercepting the majority of debris in compressed air, VATF-ZB pre-filter (0.3μm) meets the Class 100 purification requirements, and VATF-ZA PTFE precision filter (0.01μm) is capable of completely removing bacteria in compressed air.
The air sterilization filter is widely applied in aerobic fermentation engineering of microorganisms such as antibiotics (penicillin, erythrocin, oxytetracycline, etc.), amino acids (glutamic acid, lysine, threonine, etc.), organic acids (citric acid, itaconic acid, diacid, etc.), enzymic preparations (saccharifying enzyme, takadiastase, phytase, etc.), polysaccharide (xanthan gum, gellan gum, etc.) and spreading cultivation of yeast (win and beer).
Filter Element Specifications of VATF-ZB/ZC Air Filter
S/N | Specification × Diameter × Height | Filtering Capacity (m3/min) | Remarks |
1 | 5”（70×125） | 2 | Filter element with the international standard (CODE7) interface (226#) |
2 | 10”（70×250） | 6 | |
3 | 20”（70×500） | 10 | |
4 | 30”（70×750） | 15 | |
5 | 150×330 | 3 | Folding type large-area filter element |
6 | 150×500 | 5 | |
7 | 180×500 | 10 | |
8 | 220×500 | 15 | |
9 | 220×670 | 20 | |
10 | 250×670 | 30 | |
11 | 350×500 | 50 | |
12 | 350×670 | 60 | |
13 | 350×830 | 80 | |
14 | 350×1000 | 100 | |
15 | 420×830 | 120 | |
16 | 420×1000 | 150 |
Technical Parameters of Filter Element of VATF-ZC/ZB Air Filter
Filter Element Type | Technical Parameter | Purpose | ||
Filtering Efficiency | Initial Pressure Drop (MPa) | Steam Sterilization | ||
Folding large-area type | 0.5μm 99.5% | ≤0.005 | Not required | 1. Used as the main filter or pre-filter in air filtration. 2. Used as the high-efficiency air filter in related industries. |
International standard (CODE7) interface (226#) type | 0.3μm 99.99% | |||
Filter Element of VATF-ZA PTFE Air Sterilization Filter
VATF-PTFE air sterilization filter, is a kind of high-precision terminal filter, launched to meet customer demands for air sterilization filters. With the teflon membrane as the filtering medium, it has the characteristics of high hydrophobicity, high filtering precision, heat resistance, corrosion resistance, etc., and is a new option for air sterilization and filtration.
Technical Parameters of Folding Filter Element of VATF-ZA PTFE Air Sterilization Filter
Type | VATF-PTFE | Remarks |
Filtering efficiency | 99.9999% | 0.01μm |
Air resistance (MPa) | ≤0.005 | Initial pressure drop under rated flow |
Steam sterilization temperature resistance (℃) | ≤125 | Times of sterilization: >150 |
Individual filtering area (m2) | 0.65 | 10＂ |
Flow of Folding Filter Element of VATF-ZA PTFE Air Sterilization Filter
Filter Element Length (inch) | Filtering Area (m2) | Design Flow (m3/min) |
5 | 0.32 | 2 |
10 | 0.65 | 6 |
20 | 1.30 | 10 |
30 | 1.95 | 15 |
